- Place of Origin: Guangdong, China (Mainland)
- Brand Name: DEANLED
- Model Number: P6
Type:P6
Material :3528 white lamps
Size:384*192mm or 192*192mm
Features:drive IC N2026
The P6 indoor full-color display technology parametersTechnical SpecificationParametersThe ModulePixel pitch6MMModule sizeL192XH192X16MM Pixel resolution27777 dot/M2Pixel configuration1RGBD
- Place of Origin: Guangdong, China (Mainland)
- Brand Name: DEANLED
- Model Number: P6

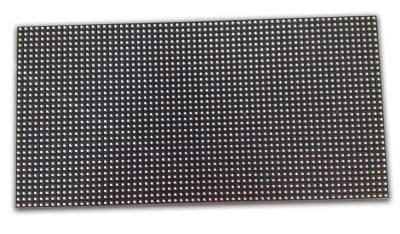

The P6 indoor full-color display technology parameters
Technical Specification | Parameters | |
The Module | Pixel pitch | 6MM |
Module size | L192XH192X16MM | |
Pixel resolution | 27777 dot/M2 | |
Pixel configuration | 1RGB | |
Driving method | 1/16scan | |
LED Encapsulation | SMD 3528 WHITE | |
Display resolution | 32X32=1024dots | |
Module weight | 0.15KG | |
Module port | HUB75 | |
Module working voltage | 5VDC | |
Module consumption | 20W | |
The display | Option distance | 6-78M |
Every square metre module | 54.25PCS | |
Viewing angle | H1200 V1200 | |
Maximum power | 1550W/ M2 | |
Driving device | MW2026 | |
Frame Frequency | ≥60 HZ/S | |
Refresh frequency | ≥400 HZ/S | |
Equilibrium brightness | ≥1800 CD/ M2 | |
Working environment temperature | -200C ~600C | |
Working environment humidity | 10%～90% | |
Display working voltage | AC46～54HZ，220V±15%/110V±15% | |
Colour temperature | 6500K-9500K | |
Gray scale/color | ≥16.7M color | |
Input signal | RF\ S-Video\ RGB etc | |
Control system | PCTV nonlinearity card DVI display card Linsn control system | |
Mean free error time | ＞5000 h | |
Life | 100000 h | |
Lamp failure frequency | ＜0.0001 | |
Antijam | IEC801 | |
Safety | GB4793 | |
Resist the electricity | 1500V last 1min (No breakdown) | |
Iron cabinet weight | 50(Standard cabinet) KG/ M2 | |
IP rating | The back IP40，The front IP43 | |
The cabinet size | L960Xh960x100MM | |
